HAGER

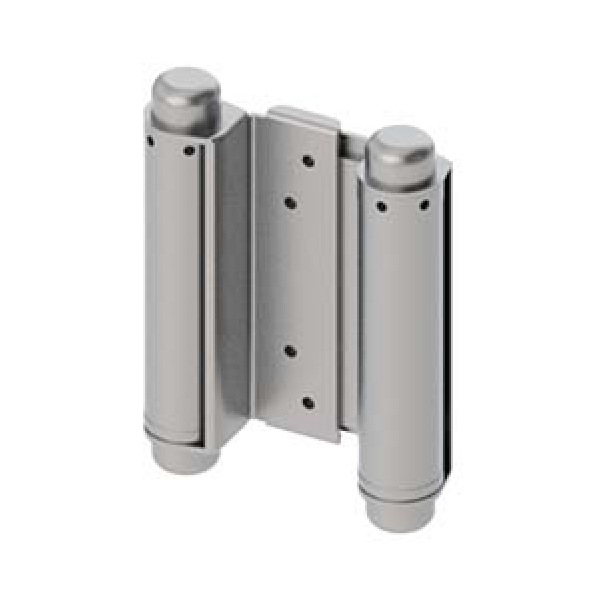

Hager RC1251 US26D 4 Commercial Spring Hinge, 4 in H Frame Leaf, 0.134 in Thick Frame Leaf, Steel, Satin Chrome
- Model Number: RC1251 US26D 4
- UPC: 041359080725
- San Lorenzo SKU: 249512
-
Hager RC1251 US26D 4 Commercial Spring Hinge, 4 in H Frame Leaf, 0.134 in Thick Frame Leaf, Steel, Satin Chrome
-
Promo Price:
-
- Alternate Item #: HHRC125126D4
- Web SKU: 101892869
HAGER RC1251 US26D 4
Hager Commercial Spring Hinge, Door Leaf Height: 4 in, Door Leaf Thickness: 0.134 in, Frame Leaf Height: 4 in, Frame Leaf Thickness: 0.134 in, Knuckle Diameter: 0.768 in, Full Mortise Mounting, Number of Mounting Holes: 8, Hole Spacing: 1.004, 0.968 in, Corner Radius: 1/4 in, Steel, Satin Chrome, Dimensions: 4 in W, Suitable for: 85 lb Weight Doors, Includes: 12-24 x 1/2 in Machine Screws, #12 x 1-1/4 in Wood Screws
| Corner Radius | : | 1/4 in |
| Dimensions | : | 4 in W |
| Door Leaf Height | : | 4 in |
| Door Leaf Thickness | : | 0.134 in |
| Frame Leaf Height | : | 4 in |
| Frame Leaf Thickness | : | 0.134 in |
| Hole Spacing | : | 1.004, 0.968 in |
| Includes | : | 12-24 x 1/2 in Machine Screws, #12 x 1-1/4 in Wood Screws |
| Knuckle Diameter | : | 0.768 in |
| Mounting Type | : | Full Mortise |
| Number of Mounting Holes | : | 8 |
| Suitable for | : | 85 lb Weight Doors |
| Material | : | Steel |
| Finish | : | Satin Chrome |
- Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames or weatherstripping on doors that may require additional spring hinges
- For maximum versatility use all spring hinges or a combination of spring hinges and ball-bearing hinges
