DIG BO9D

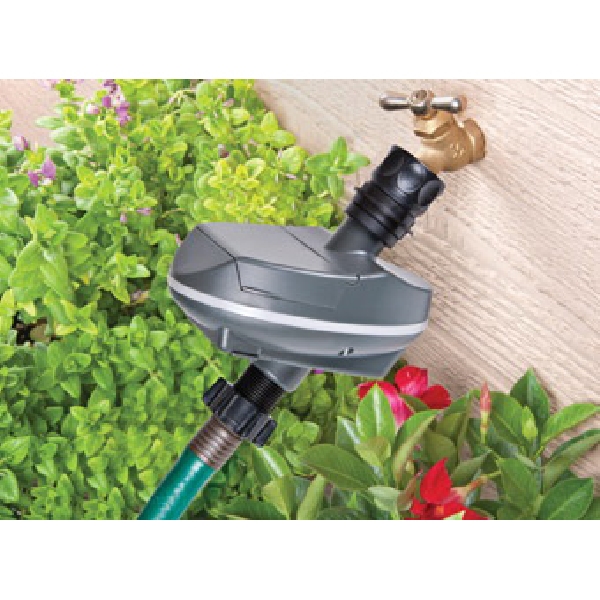

The B09D 3/4 in digital hose end timer, one in DIG newest range of hose end timers, offers simplified programming and improved monitoring of battery power with less current, resulting in longer battery life and more reliable operation. With higher flow rates at lower inlet pressures and a range of programming features, the B09D delivers a reliable and cost effective solution for residential use. The timer has four start times per day with durations from 1 min to 12 hr 59 min in an operating flow range of 0.5 to 6.3 gpm, allowing use in a wide range of applications including drip irrigation or micro sprinkler systems connected to a garden hose or faucet/spigot. It uses one 9 V alkaline battery that can last for over a year.
| Battery Type | : | Alkaline |
| Depth | : | 6 in |
| Display Type | : | LCD |
| Height | : | 6.5 in |
| Material | : | ABS |
| Time Setting | : | 1 min to 12 hr 59 min |
| Type | : | Digital |
| Voltage Rating | : | 9 V |
| Width | : | 4 in |
| Number of Zones | : | 1 |
- Easy programming using six buttons and large LCD display
- Seven day watering calendar
- Electronic battery monitoring that provides constant reading of battery strength
- Five part battery strength indication 4, 3, 2, 1 bar and then flashing one bar on close down
- Low battery auto lock out to ensure that the timer valve will not open unless it can close
- High-strength female hose thread connection with easy removal via spring clip
- Rain mode easily accessed by holding the OFF key for three seconds
- High water flow at normal water pressures
- Operates on low water flow of less than 0.5 gpm
- Powered by 9 V alkaline battery with a battery life up to one year
Instruction/Installation Manual
