DIG B302

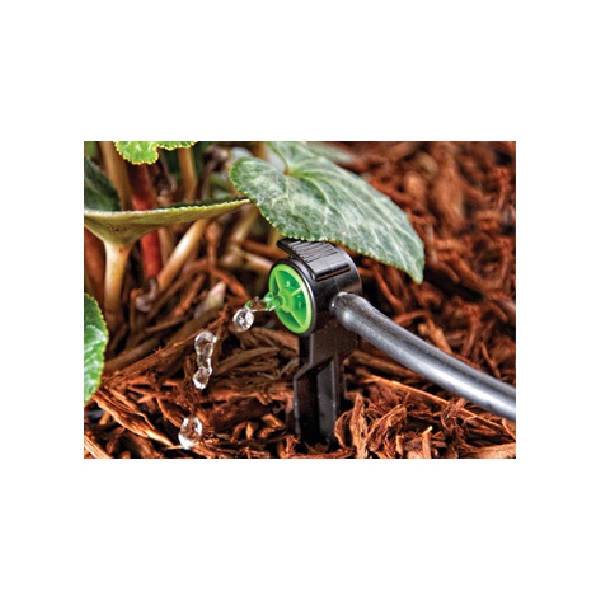

DIG PC drip emitter on stake is a turbulent-flow-path pressure compensating drip emitter, designed to produce a consistent flow rate of 2 gph in a pressure range of 10 to 40 psi. The drip emitter on stake contains a diaphragm that continuously adjusts to varying water pressures regardless of elevation or any pressure fluctuation along the laterals, ensuring even and consistent flow rates from each drip emitter. They can be used for any type of planting, including pots and baskets and with long runs of drip tubing. Use 1/4 in micro tubing to extend the emitter stakes from the drip tubing directly to the plant.
| Dimensions | : | 5.7 in H |
| Dripper Type | : | Pressure Compensating |
| Gallons per Hour | : | 2 gph |
| Gallons per Minute | : | 0.03 gpm |
| Includes | : | 5 |
| Maximum Pressure | : | 40 psi |
| Tubing Size | : | 1/4 in |
| Material | : | Polypropylene |
| Color | : | Green |
- Efficient and simple design combines PC drip emitter and stake
- Allows water to drip directly to the root zone, delivering a constant deep watering
- Turbulent flow path and pressure compensating with predefined flow rate
- Secure and easy installation into micro tubing without glue or clamps
- Rugged materials can withstand adverse conditions
- Provides uniform flow rate from each drip emitter stake along the line
- Made with high-impact UV-resistant plastic
- Built-in diaphragm ensures constant flow rates at a range of 15 to 40 psi
