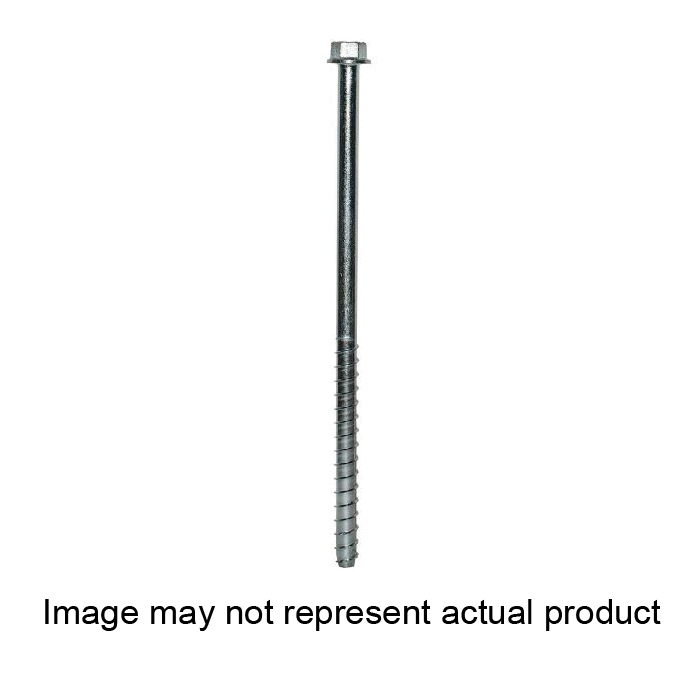

Simpson Strong-Tie Titen HD Series THD501200HMG Screw Anchor, 12 in L, Carbon Steel, Galvanized
- Model Number: THD501200HMG
- San Lorenzo SKU: 249727
-
Simpson Strong-Tie Titen HD Series THD501200HMG Screw Anchor, 12 in L, Carbon Steel, Galvanized
-
Promo Price:
-
- Alternate Item #: SSTTHD501200H
- Web SKU: 101889868
Simpson Strong-Tie THD501200HMG
The original high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titen HD demonstrates industry-leading performance even in seismic conditions. The stainless-steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water or when chemical or corrosive solutions are present.
| Drill Size | : | 1/2 in |
| Head Type | : | Hex Washer |
| Length | : | 12 in |
| Material Gauge | : | 12 ga |
| Material | : | Carbon Steel |
| Finish | : | Galvanized |
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required designed to install using standard-sized ANSI tolerance drill bits
- Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
- Hex-washer head requires no separate washer, unless required by code and provides a clean installed appearance
- Reuse of the anchor to achieve listed load values is not recommended
