HALO HLB4069FS16P
For new construction or renovation projects, the ultra-thin MicroEdge lens downlight simplifies installation by installing directly into drywall or suspended ceilings without the need for a recessed housing or junction box, saving time and money. The HLB4 features 5 field-selectable color temperatures and the textured lens provides smooth light distribution for general area lighting applications in low to medium height ceilings. The HLB4 works great in interior or exterior soffit lighting applications.
| Average Life | : | 50, 000 hr |
| Color Rendering Index (CRI) | : | 90 |
| Color Temperature | : | 2700 to 5000 K |
| Current Rating | : | 100 mA |
| Dimensions | : | 4.73 in Dia x 3.16 in H |
| Insulation Type | : | Foam |
| Lumens | : | 600 Lumens |
| Material | : | Aluminum |
| Mounting Type | : | Ceiling |
| Recessed Can Diameter | : | 4 in |
| Temperature Rating | : | -30 to 40 deg C |
| Voltage Rating | : | 120 V |
| Wattage Rating | : | 10.3 W |
| Lamp Type | : | LED |

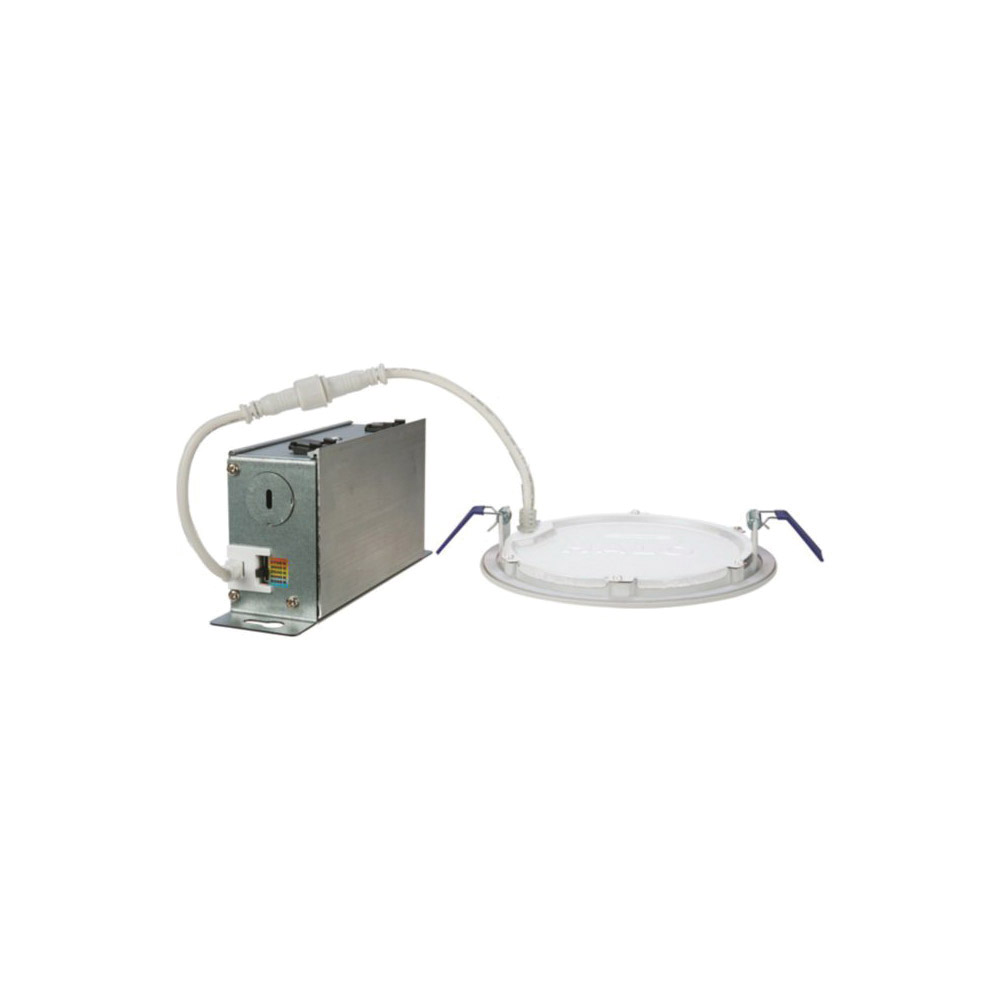

- Ultra thin round lens downlight with remote driver/junction box
- Install into drywall/suspended ceilings (no J-box or housing required)
- Install from below the ceiling in as little as a 1-1/2 in plenum height
- Wet location listed for showers and protected ceilings
- 120 V, phase dimming down to 5%, lumens up to 750
- AIR-TITE™ reduces airflow between unconditioned and conditioned spaces
Instruction/Installation Manual
