Challenger

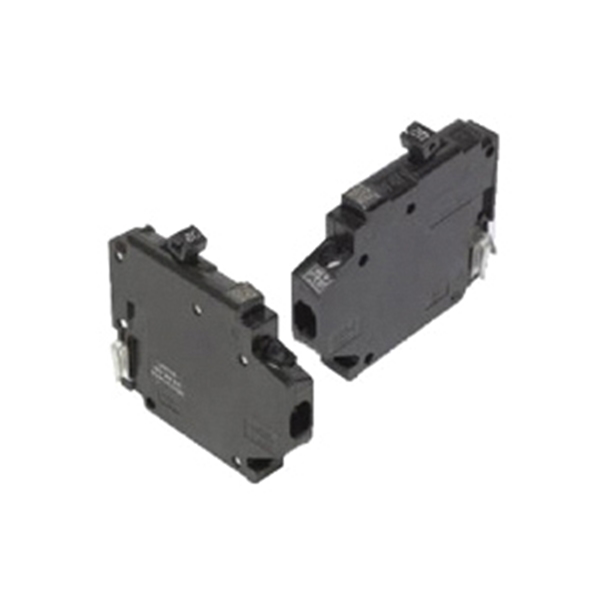

Challenger A120L Circuit Breaker, Type A, Type TBA, 20 A, 1-Pole, 120/240 V, Standard Trip, Plug
- Model Number: A120L
- UPC: 094925018936
- San Lorenzo SKU: 462729
-
Challenger A120L Circuit Breaker, Type A, Type TBA, 20 A, 1-Pole, 120/240 V, Standard Trip, Plug
-
Promo Price:
-
- Alternate Item #: CEA12OL
- Web SKU: 100036494
Challenger A120L
Requires 1/2 of one 1 in space. 120 V 10,000 AIC. HACR rated. "L" suffix means breaker attaches to the left hand side of the bus bar only. "R" suffix means breaker attaches to the right hand side of the bus bar only. Breakers should be bought in pairs to fill the 1 in space.
| Current Rating | : | 20 A |
| Dimensions | : | 3.35 in L x 0.5 in W x 2.6 in H |
| Interrupt Rating | : | 10 kA |
| Operating Frequency | : | 50/60 Hz |
| Suitable for | : | Thomas and Betts Challenger Load Centers, Kitchen Circuits, Branch Circuits |
| Wire Size | : | 14 to 4 AWG |
| Type | : | Type A, Type TBA |
| Voltage Rating | : | 120/240 V |
| Number of Phases | : | 1 |
| Number of Poles | : | 1 |
| Trip Type | : | Standard |
| Terminal Type | : | Lug |
| Mounting Type | : | Plug |
