Challenger

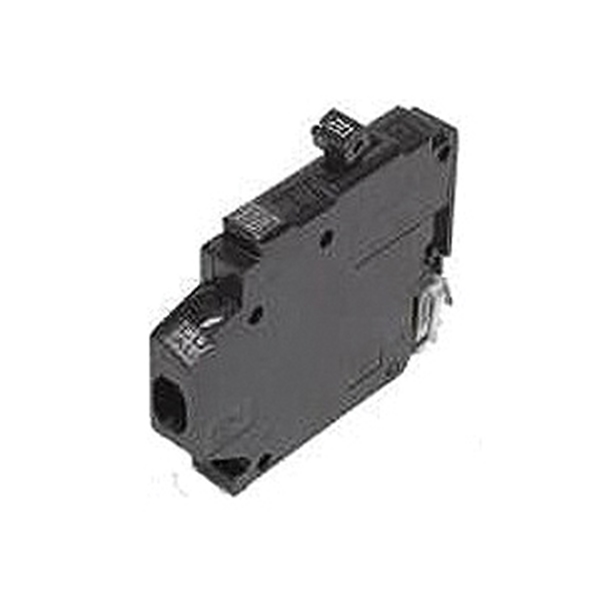

Challenger A115L Circuit Breaker, Type A, Type TBA, 15 A, 1 -Pole, 120/240 V, Plug Mounting
- Model Number: A115L
- UPC: 094925019094
- San Lorenzo SKU: 462721
-
Challenger A115L Circuit Breaker, Type A, Type TBA, 15 A, 1 -Pole, 120/240 V, Plug Mounting
-
Promo Price:
-
- Alternate Item #: CEA115L
- Web SKU: 100010845
Challenger A115L
Requires 1/2 of one 1 in space. 120 V 10,000 AIC. HACR rated. "L" suffix means breaker attaches to the left hand side of the bus bar only. "R" suffix means breaker attaches to the right hand side of the bus bar only. Breakers should be bought in pairs to fill the 1 in space.
| Current Rating | : | 15 A |
| Dimensions | : | 3.35 in L x 0.5 in W x 2.6 in H |
| Interrupt Rating | : | 10 kA |
| Operating Frequency | : | 50/60 Hz |
| Suitable for | : | Thomas and Betts Challenger Load Centers, Fixed Lighting Circuits |
| Wire Size | : | 14 to 4 AWG |
| Type | : | Type A, Type TBA |
| Voltage Rating | : | 120/240 V |
| Number of Phases | : | 1 |
| Number of Poles | : | 1 |
| Terminal Type | : | Lug |
| Mounting Type | : | Plug |
