Simpson Strong-Tie
Simpson Strong-Tie CCQ46-SDS2.5HDG Series Column Cap, 3-5/8 in Beam Width, 11 in L, Steel, Hot-Dipped Galvanized
- Model Number: CCQ46-SDS2.5HDG
- UPC: 707392821601
- San Lorenzo SKU: 248833
-
Simpson Strong-Tie CCQ46-SDS2.5HDG Series Column Cap, 3-5/8 in Beam Width, 11 in L, Steel, Hot-Dipped Galvanized
-
Promo Price:
-
- Alternate Item #: SSTCCQ46SDSHD
- Web SKU: 100318756

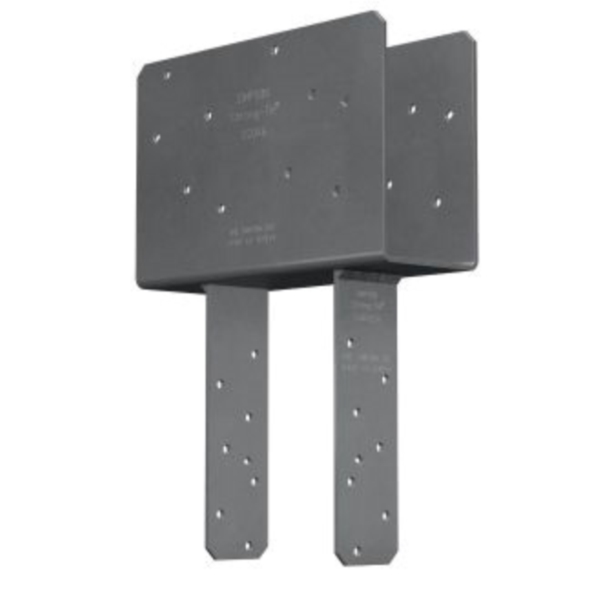

Simpson Strong-Tie CCQ46-SDS2.5HDG
Column caps provide a strong connection for column-beam combinations. This design uses Strong-Drive® SDS heavy-duty connector screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts.
| Beam Width | : | 3-5/8 in |
| Fastener Size | : | 1/4 x 2-1/2 in |
| Fastener Type | : | Screw |
| Finish | : | Hot-Dipped Galvanized |
| Height | : | 15-1/2 in |
| Length | : | 11 in |
| Post/Joist Size | : | 5-1/2 in |
| Thickness | : | 7 ga |
| Weight Capacity | : | 24, 065 lb |
| Material | : | Steel |
Specification Sheet
