Simpson Strong-Tie ECCQ3-4SDS2.5 Column Cap, 3-5/8 in Post/Joist, 8-1/2 in L, Steel
- Model Number: ECCQ3-4SDS2.5
- UPC: 707392808602
- San Lorenzo SKU: 245292
-
Simpson Strong-Tie ECCQ3-4SDS2.5 Column Cap, 3-5/8 in Post/Joist, 8-1/2 in L, Steel
-
Promo Price:
-
- Alternate Item #: SSTECCQ34SDS2
- Web SKU: 100318826

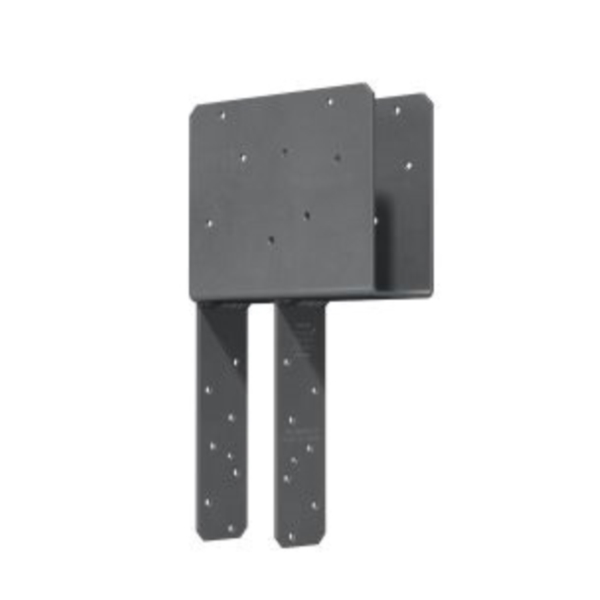

Simpson Strong-Tie ECCQ3-4SDS2.5
Column caps provide a strong connection for column-beam combinations. This design uses Strong-Drive® SDS heavy-duty connector screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts.
| Beam Width | : | 3-1/4 in |
| Fastener Size | : | 1/4 x 2-1/2 in |
| Fastener Type | : | Screw |
| Height | : | 15-1/2 in |
| Length | : | 8-1/2 in |
| Post/Joist Size | : | 3-5/8 in |
| Thickness | : | 7 ga |
| Weight Capacity | : | 6125 lb |
| Color | : | Gray |
| Material | : | Steel |
Specification Sheet
