Simpson Strong-Tie
Simpson Strong-Tie ITS ITS2.56/9.5 Top Flange Hanger, 9-7/16 in H, 2 in D, 2-5/8 in W, 2-1/2 to 2-9/16 x 9-1/2 in
- Model Number: ITS2.56/9.5
- UPC: 707392463009
- San Lorenzo SKU: 245900
-
Simpson Strong-Tie ITS ITS2.56/9.5 Top Flange Hanger, 9-7/16 in H, 2 in D, 2-5/8 in W, 2-1/2 to 2-9/16 x 9-1/2 in
-
Promo Price:
-
- Alternate Item #: SSTITS25695
- Web SKU: 100318160

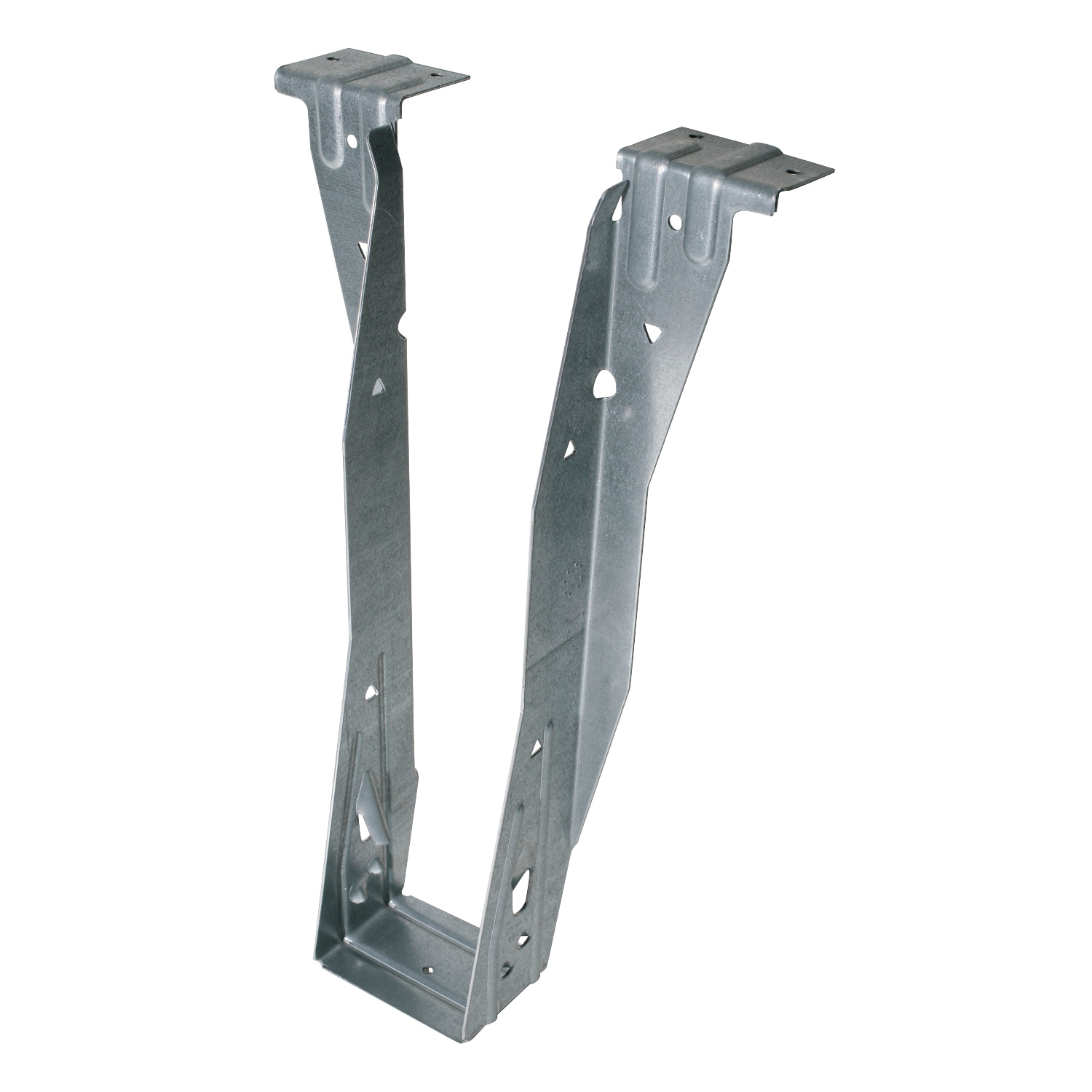

Simpson Strong-Tie ITS2.56/9.5
The innovative ITS is designed to support 90 deg connections of I-joists to headers. This top-flange hanger features the Strong-Grip™ seat and Funnel Flange™ design allowing standard joist installation without the use of joist nails, resulting in the lowest installed cost.
| Depth | : | 2 in |
| Fastener Type | : | Nail |
| Height | : | 9-7/16 in |
| Material | : | Steel |
| Size | : | 2-1/2 to 2-9/16 x 9-1/2 in |
| Skew Angle | : | 5 deg |
| Width | : | 2-5/8 in |
| Finish | : | Galvanized/Zinc |
- The Strong-Grip™ seat firmly secures I-joists with flange thickness from 1-1/8 to 1-1/2 in
- No joist nailing required for standard I-joist installation without web stiffeners
- Made from 18 ga steel
- Galvanized (G90) for extra corrosion resistance
- Cost-effective hanger that installs quickly with a small number of nails
- Features additional triangle holes for additional uplift
- Features optional fastening with PAT for steel applications/header
