KWIKSET
Kwikset Signature Series 258 SQT 15 Deadbolt, 1 Grade, Zinc, Satin Nickel, 2-3/8, 2-3/4 in Backset, KW1 Keyway
- Model Number: 258 SQT 15
- San Lorenzo SKU: 252907
-
Kwikset Signature Series 258 SQT 15 Deadbolt, 1 Grade, Zinc, Satin Nickel, 2-3/8, 2-3/4 in Backset, KW1 Keyway
-
Promo Price:
-
- Alternate Item #: KWI258SQT15
- Web SKU: 102176465
KWIKSET 258 SQT 15

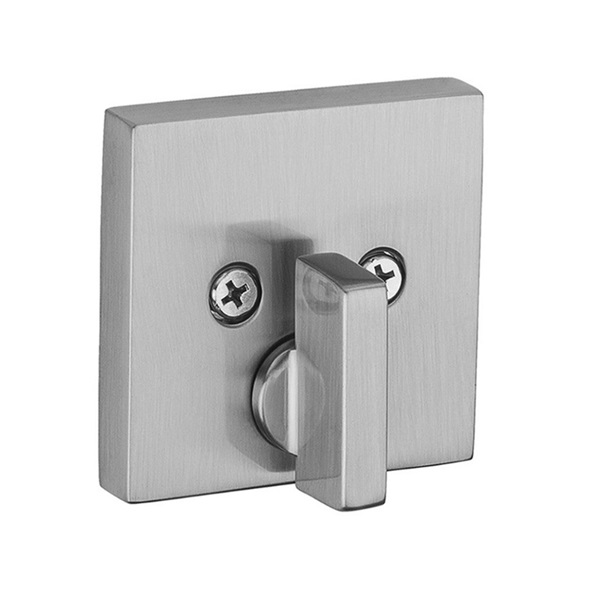

Downtown, a square slim deadbolt is the latest in contemporary design and a perfect accent for the style-conscious consumer.
| Backset Size | : | 2-3/8, 2-3/4 in |
| Backset Type | : | Adjustable |
| Bolt Type | : | Tapered |
| Commercial/Residential | : | Residential |
| Cross Bore Diameter | : | 2-1/8 in |
| Cylinder Type | : | 5-Pin |
| Design | : | Contemporary |
| Dimensions | : | 2-5/8 in H |
| Door Handing | : | Reversible |
| Door Thickness | : | 1-3/8 to 1-3/4 in |
| Edge Bore Diameter | : | 1 in |
| Interior Locking | : | Turn Piece |
| Keyway Type | : | KW1 |
| Material | : | Zinc |
| Number of Cylinders | : | 1 |
| Projection Size | : | 1/2 in Exterior, 1-3/8 in Interior |
| Re-Key Technology | : | SmartKey |
| Throw Length | : | 1 in |
| Type | : | Downtown, One-Sided, Square |
| Security Grade | : | 1 |
| Finish | : | Satin Nickel |

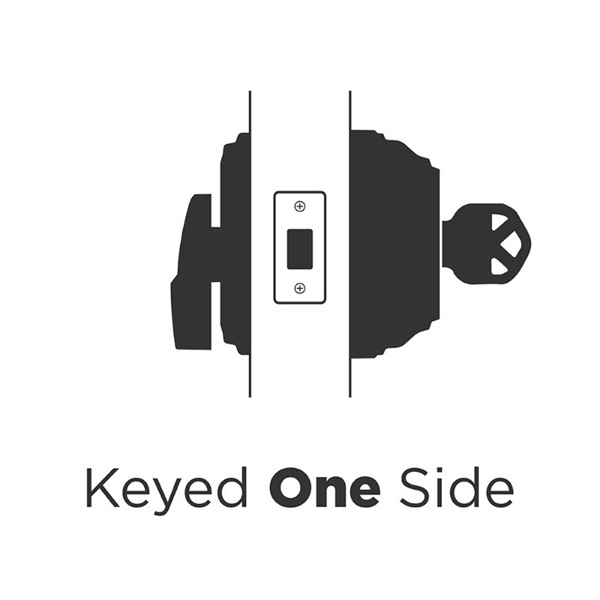

- This single cylinder deadbolt can be locked or unlocked by a key on the outside or the turn piece on the inside
- 50% less protrusion than standard deadbolts
- Exposed screws on interior thumb piece
- Detent spring to align turn piece
- Tapered bolt to protect against warped doors
- New, advanced smartkey security re-key technology with the latest propriety security features that enhance protection against uncommon and sophisticated forced entry techniques
