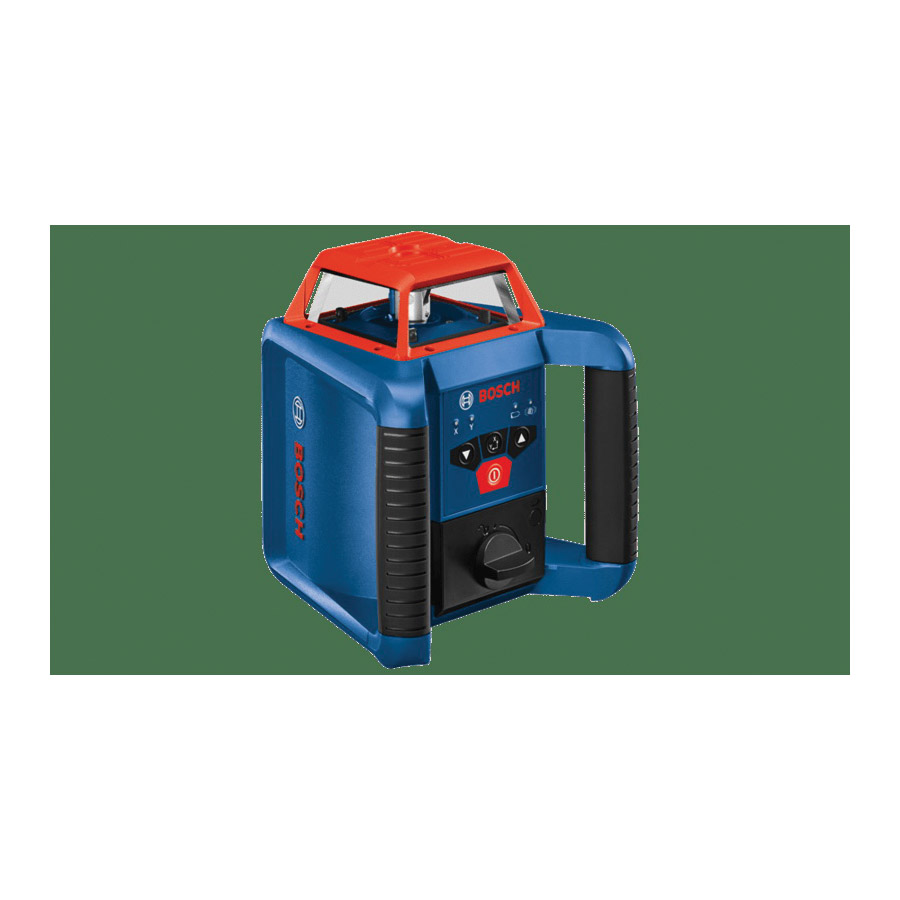

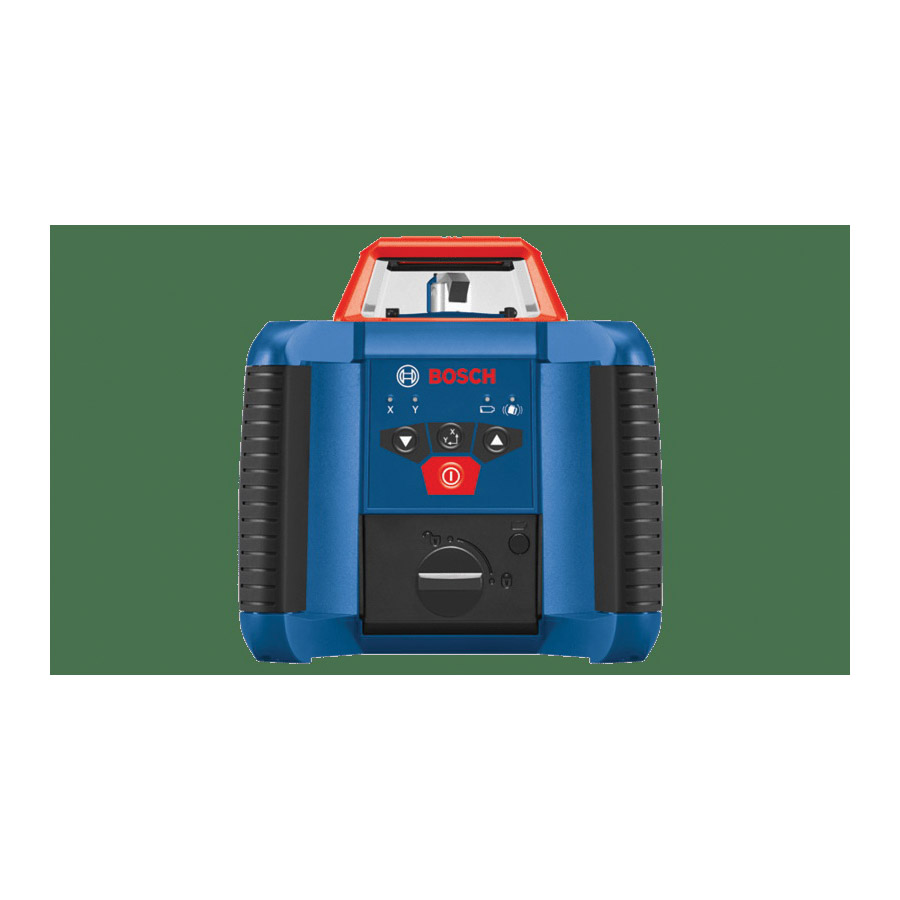

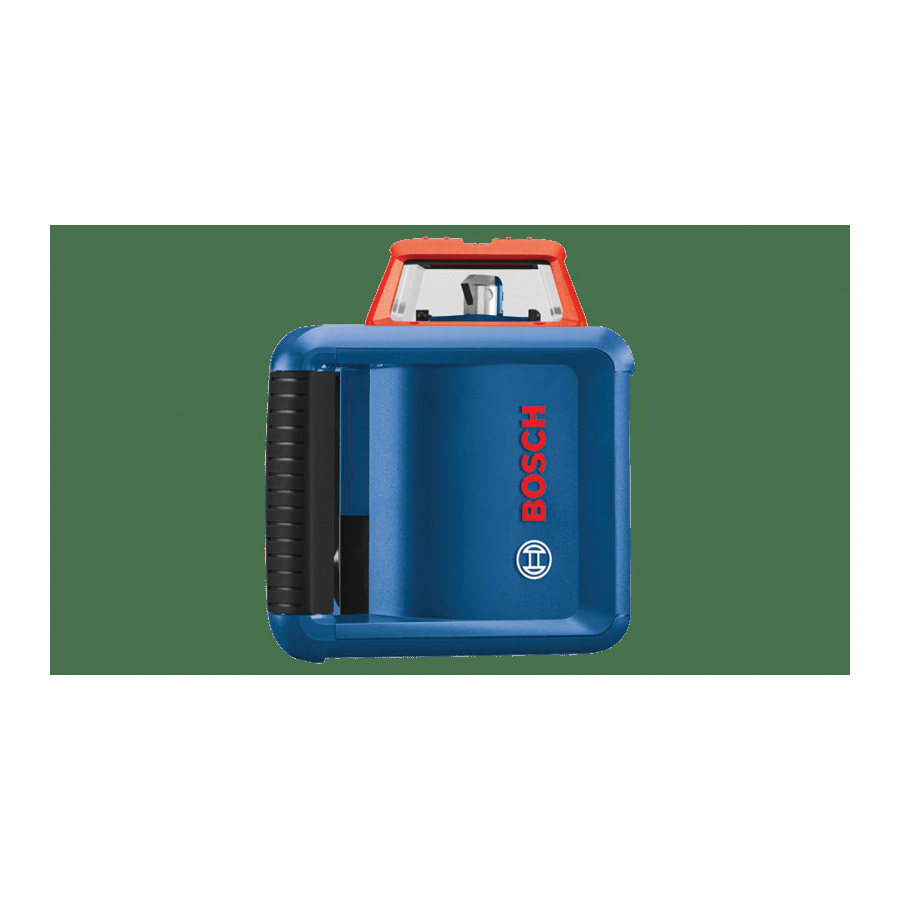

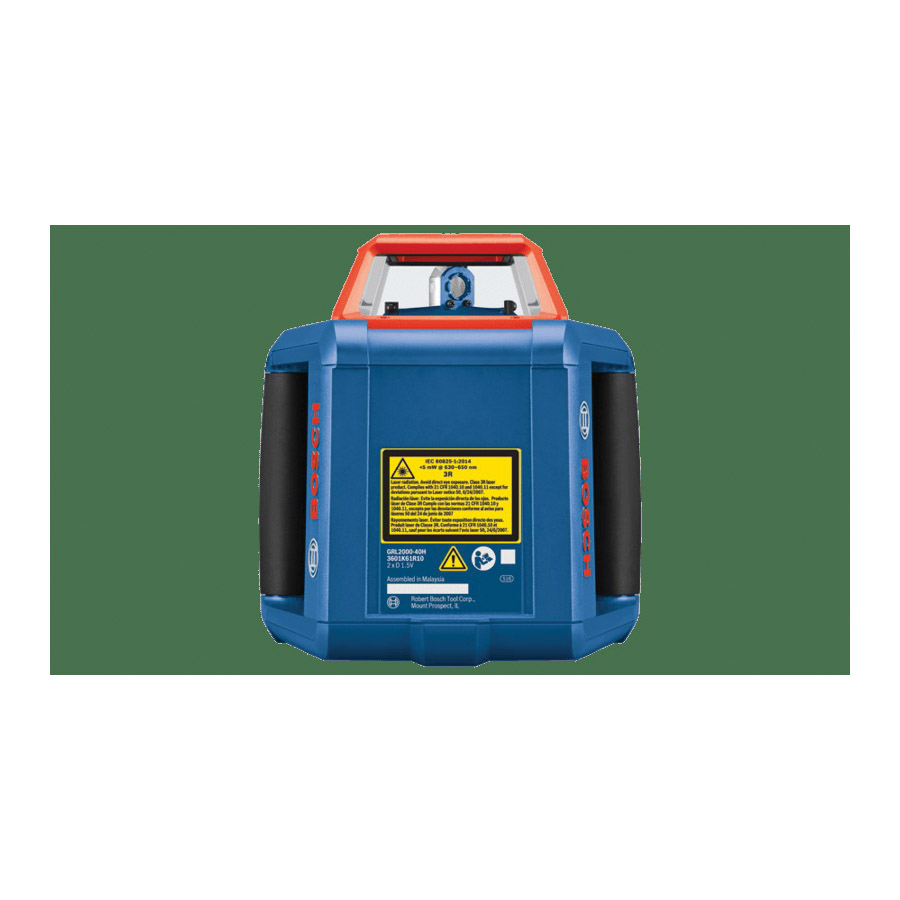

The Bosch REVOLVE2000 self-leveling horizontal rotary laser kit delivers a comprehensive solution for precise outdoor and indoor leveling. Manual dual slope allows the user to adjust the slope angle on the laser on both the X and Y-axes. The GRL2000-40HK features a horizontal self-leveling laser, suitable for leveling and aligning applications. This kit contains an all-in-one hard carrying case designed to hold all included accessories. The REVOLVE2000 rotary laser delivers +/-1/16 in accuracy at 100 ft and working range of up to 2000 ft with the included receiver. The laser's electronic self-leveling system has a disturbance monitor, which indicates to the user if tool position changes, ensuring consistent leveling accuracy on the jobsite. The laser has a red metal cage for durability. Easy to use, the kit includes an all-in-one solution includes an LR20 laser receiver with mounting bracket, aluminum tripod and sturdy grade rod.
| Accuracy | : | +/- 1/16 in |
| Battery Type | : | D |
| Battery Voltage | : | 1.5 V |
| Dimensions | : | 7 in L x 6.7 in W x 7.5 in H |
| IP Rating | : | IP56 |
| Includes | : | (1) LR20 Laser Receiver with Bracket, (1) BT160 Aluminum Contractor Tripod, (1) GR13 13 ft Grade Rod, (1) Red Laser Glasses, (1) Red Target Plate, (2) AA Batteries, (2) D-Cell Batteries, (1) All-In-One Hard Carrying Case |
| Interior/Exterior | : | Exterior, Interior |
| Leveling Type | : | Self |
| Measuring Range | : | 2000 ft |
| Mounting Type | : | Tripod |
| Number of Beams | : | 1 |
| Operating Temperature | : | 14 to 122 deg F |
| Laser Color | : | Red |
- Laser receiver with mounting bracket allows for easy-to-read LCD dual display and easy attachment to leveling rod
- Lightweight aluminum tripod features quick-clad release on legs and durable finish
- Durable design features cage overmold and two large easy-to-grip carrying handles for convenience and additional drop protection
- Comprehensive kit features a rotary laser, laser receiver, tripod, grade rod, laser glasses and all-in-one hard carrying case
- All-in-one hard carrying case designed to hold included accessories
- Electronic self-leveling allows for easy setup and use on the job
