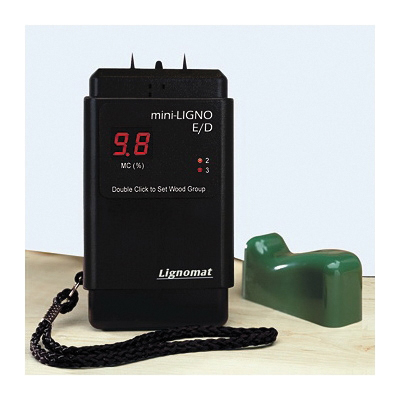

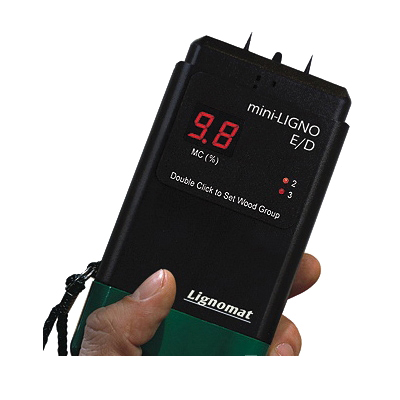

Lignomat ED-0

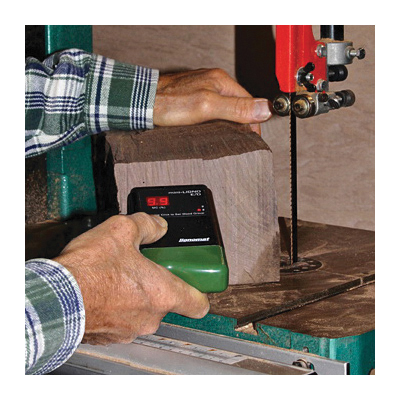

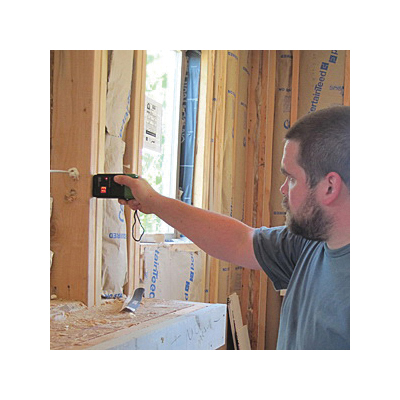

The mini-Ligno E/D is a pin meter for measuring wood, with a wide moisture range for any industrial application.
| Battery Voltage | : | 9 V |
| Dimensions | : | 5-1/2 in L x 2-3/4 in W x 1 in H |
| Display Type | : | LED |
| Includes | : | (1) Carrying Pouch with Belt Loop, (1) Wrist Strap, (1) 9 V Battery, (1) Wood Group Chart and (2) Pair Pins |
| Material | : | Plastic |
| Measuring Range | : | 6 to 45 % |
| Resolution | : | 0.1 % |
| Temperature Rating | : | 70 deg F |
- Bright LED display
- Ergonomic, durable, rugged design for easy operation
- Wide measuring range for wood scale (6 to 45%)
- Built-in corrections for two wood groups
- Automatic shut off
- Temperature stable circuitry with built-in calibration check for the meter
Instruction/Installation Manual
