KWIKSET

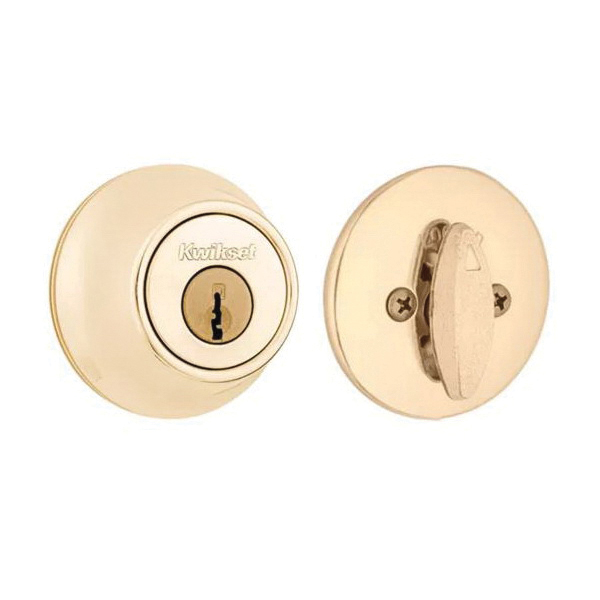

Kwikset 660 Series 660 3 Deadbolt, 3 Grade, Different Key, Polished Brass, 2-3/8, 2-3/4 in Backset, KW1 Keyway
- Model Number: 660 3
- UPC: 042049090604
- San Lorenzo SKU: 253103
-
Kwikset 660 Series 660 3 Deadbolt, 3 Grade, Different Key, Polished Brass, 2-3/8, 2-3/4 in Backset, KW1 Keyway
-
Promo Price:
-
- Alternate Item #: KWI96600747
- Web SKU: 102946983
KWIKSET 660 3
Kwikset 660 Deadbolt, One-Sided, Keyed, Security Grade: 3, Number of Cylinders: 1, Cylinder Type: 5-Pin, Keyway Type: KW1, Key Type: Different, Re-Key Technology: SmartKey, Strike Type: Round Corner, Strike Size: 2-1/4 in, Backset Type: Dual, Backset Size: 2-3/8, 2-3/4 in, Faceplate Size: 1 x 2-1/4 in, Throw Length: 1 in, Cross Bore Diameter: 2-1/8 in, Edge Bore Diameter: 1 in, Door Thickness: 1-3/8 to 1-3/4 in, Commercial/Residential: Residential, Polished Brass, Includes: (2) Keys and Strike
| Backset Size | : | 2-3/8, 2-3/4 in |
| Backset Type | : | Dual |
| Commercial/Residential | : | Residential |
| Cross Bore Diameter | : | 2-1/8 in |
| Cylinder Type | : | 5-Pin |
| Door Thickness | : | 1-3/8 to 1-3/4 in |
| Edge Bore Diameter | : | 1 in |
| Faceplate Size | : | 1 x 2-1/4 in |
| Includes | : | (2) Keys and Strike |
| Key Type | : | Different |
| Keyway Type | : | KW1 |
| Number of Cylinders | : | 1 |
| Re-Key Technology | : | SmartKey |
| Strike Size | : | 2-1/4 in |
| Strike Type | : | Round Corner |
| Throw Length | : | 1 in |
| Type | : | One-Sided, Keyed |
| Security Grade | : | 3 |
| Finish | : | Polished Brass |
- For use on exterior doors where keyed entry and security is needed
- Deadbolt operated by key outside and thumb turn inside
- Deadbolt latch has 2 interchangeable faceplates - round corner and square corner
- Latch has adjustable backset 2-3/8 to 2-3/4 in to fit all standard door preparations

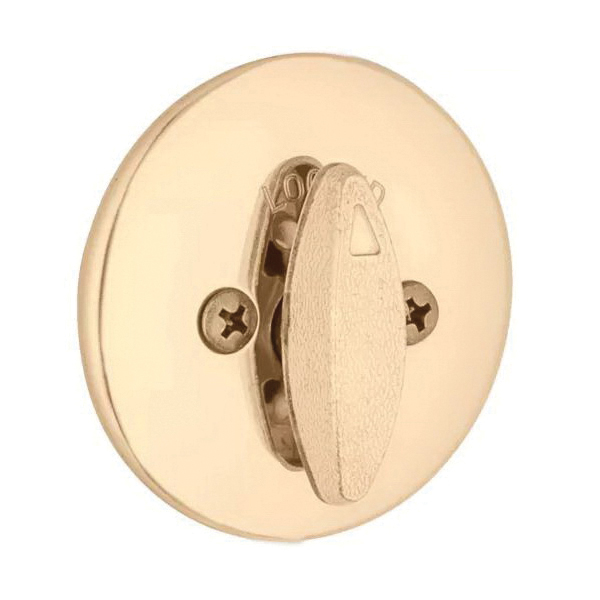

- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban anti-microbial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Instruction/Installation Manual
