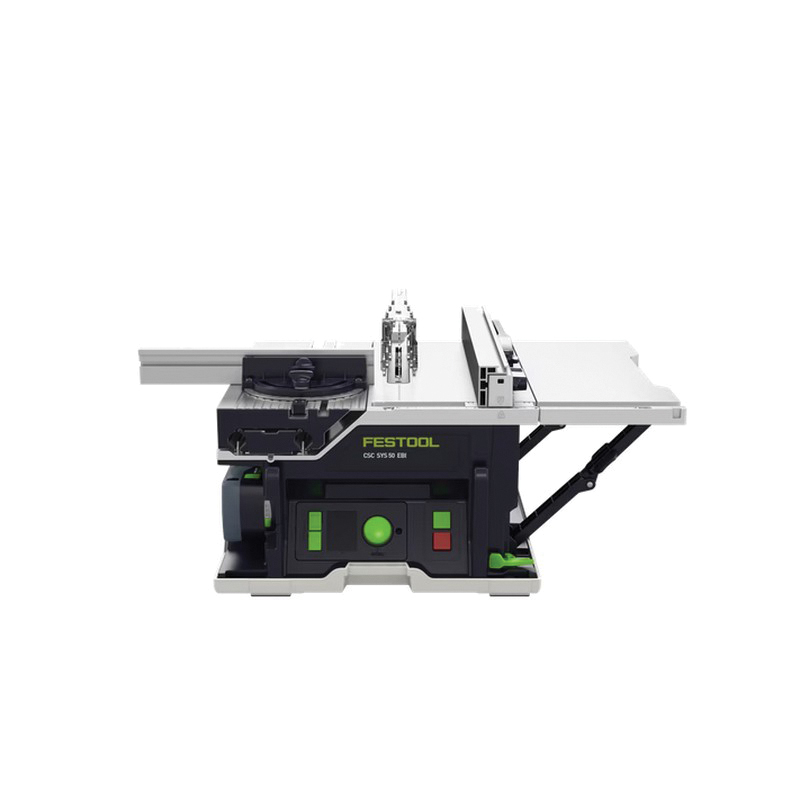

The ultimate in portable precision. The cordless table saw that fits in a Systainer. The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make rip cuts of up to 11 in (280 mm), cross cut widths of up to 17-3/4 in (450 mm) and bevel cuts of -2 to 47 deg. The unique digital operation produces results with maximum precision, with accuracy within a tenth of a millimeter (1/256 in). The 2 x 18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque - you won't notice any difference compared with a corded table saw. Together with the UG-CSC-SYS underframe, you have The ideal worktable with built-in support for ripping and cross cutting and it collapses for easy transport from The vehicle to The site.
| Arbor Size | : | 3/4 in |
| Cutting Angle | : | -10 to 47 deg |
| Dimensions | : | 20-5/32 in L x 15-19/32 in W x 11-21/32 in H |
| Frequency Rating | : | 2402 to 2480 MHz |

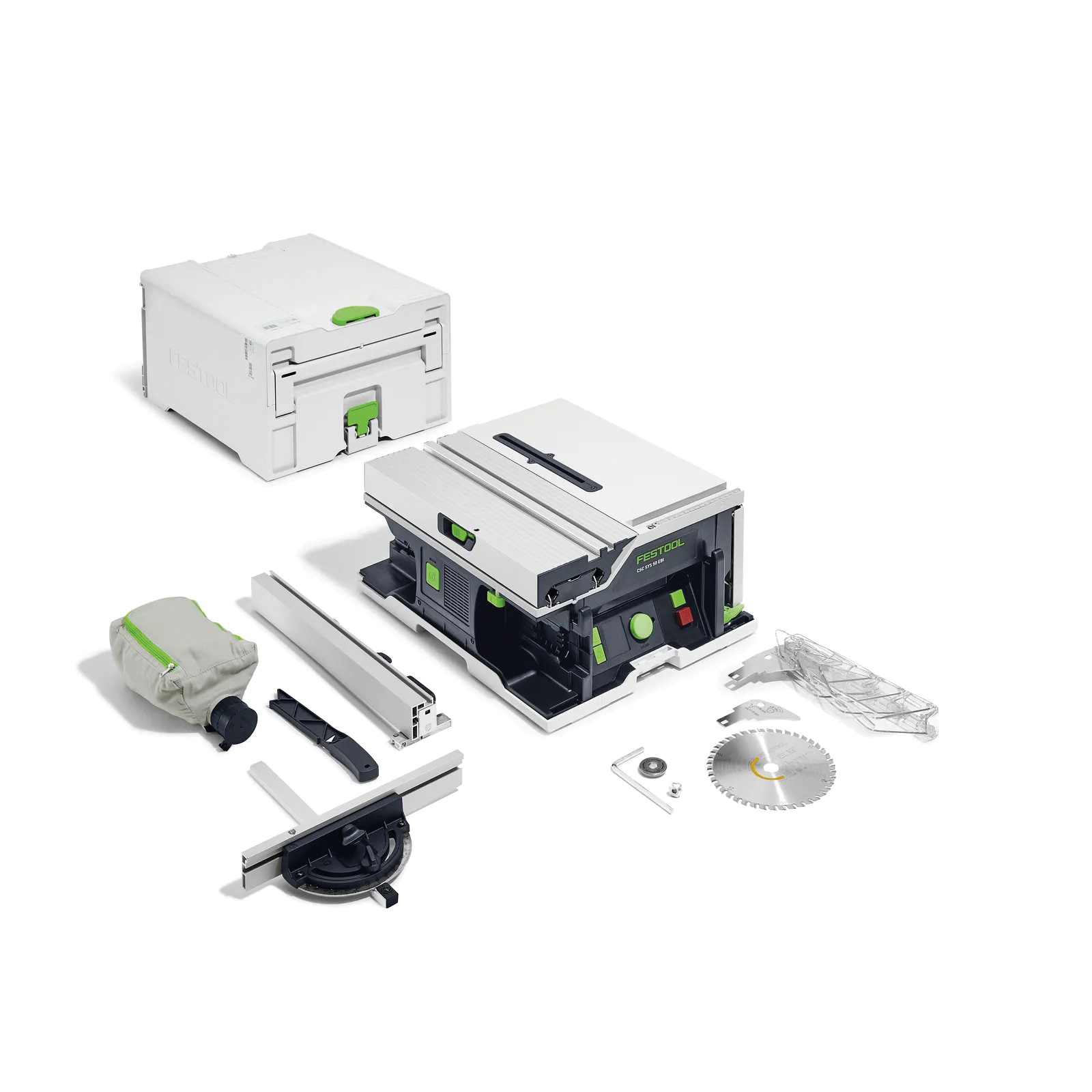

| Includes | : | Saw Blade, Rip Fence, Push Stick, Miter Gauge, SB-CSC SYS Dust Bag, Riving Knife, Blade Guard and Splitter and 6 mm Hex Key |
| Maximum Cutting Depth at 45 degrees | : | 1-11/32 in |
| Speed Rating | : | 4500 to 6800 rpm |
| Suitable For | : | Festool Systainer Systems and Systainer Systems Van Racking Equipment's |
| Table Dimensions | : | 8-7/8 in H |
| Voltage Rating | : | 18 V |
- Versatile - parallel cuts up to 11 in (280 mm), cross cut width of up to 17-3/4 in (450 mm)
- Practical - at a cutting height of up to 1-3/8 in (35 mm), through to bevel cuts down to -10 deg, ideal for back beveling filler strips
- Compact and mobile - can be easily carried with one hand neatly stored in a Systainer format

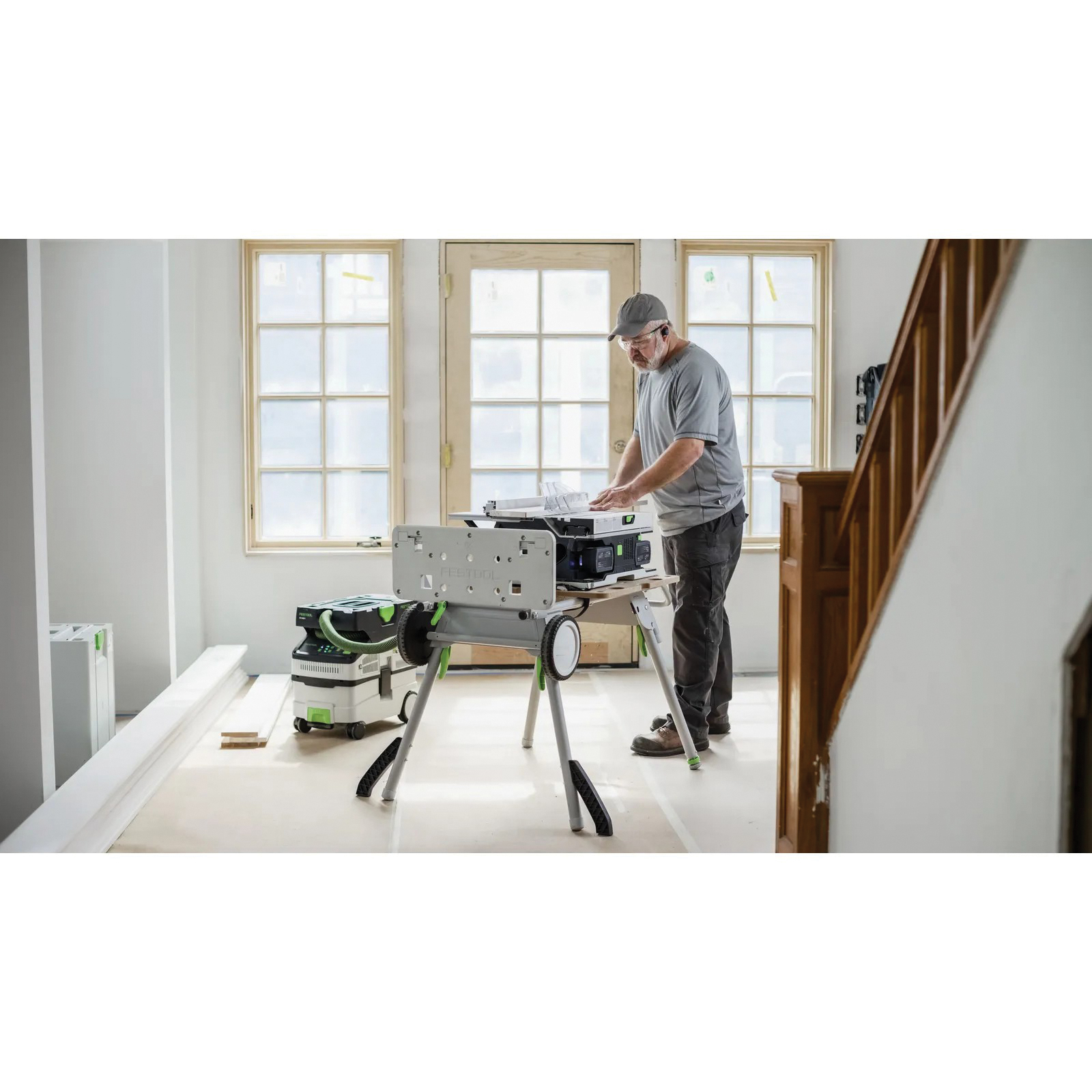

- Even easier to transport with the wheeled UG-CSC-SYS underframe

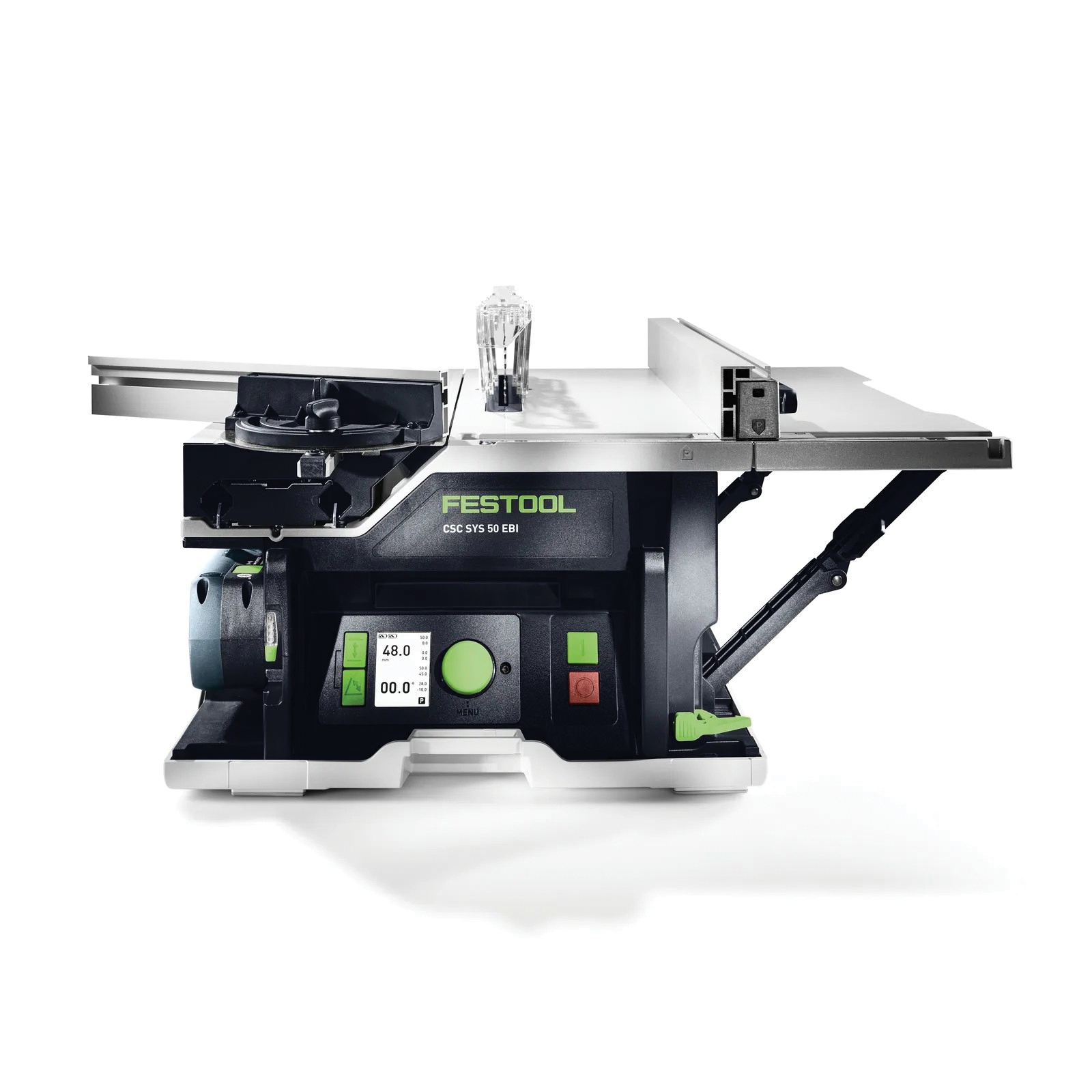

- Extreme precision - the height and bevel angle are electrically adjusted at the press of a button via the digital display - accurate to within a tenth of a millimeter (1/256 in)
- Repeatable cuts are easy - the height and angle (mm and in) are set parallax-free via the digital display, more accurately than any visual judgement
- Repeatable cuts are a sure thing
- Convenient - four saw blade positions can be saved and selected via the digital display
- Highly precise rip fence - robust rip fence with double clamp (via just one clamp lever) for exact alignment and ideal cutting results
- Highly precise angles - the miter gauge is optimally aligned and centrally clamped via a groove on the sliding table
