Leviton Lever Edge E5825-W Duplex Outlet, 2-Pole, 20 A, 125 V, NEMA: NEMA 5-20R, White
- Model Number: E5825-W
- UPC: 078477018224
- San Lorenzo SKU: 454912
-
Leviton Lever Edge E5825-W Duplex Outlet, 2-Pole, 20 A, 125 V, NEMA: NEMA 5-20R, White
-
Promo Price:
-
- Alternate Item #: LEVR02E58250S
- Web SKU: 103855745
Leviton E5825-W
20 A, 125 V, NEMA 5-20R, 2-pole, 3-wire, straight blade, decora duplex tamper-resistant outlet, self-grounding, UL/CSA, NEC compliant – white.
| Voltage Rating | : | 125 V |
| Wire Size | : | 12 to 10 AWG |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
| NEMA Configuration | : | NEMA 5-20R |
| Current Rating | : | 20 A |

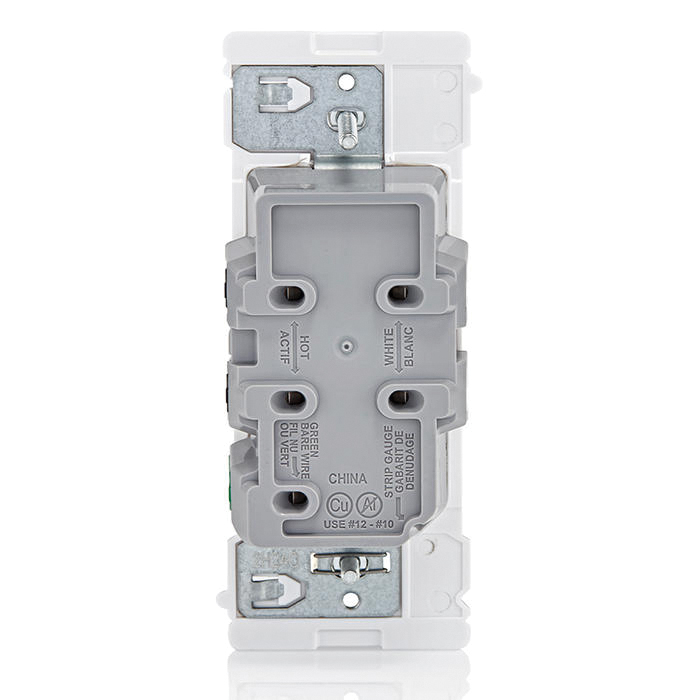

- Faster - unique lever terminals for fast, efficient wiring, as easy as push click done
- Easier - large strap makes installations easier as well as the ability to use 12 and 10 ga stranded and solid copper wire
- Safer - no exposed metal parts for enhanced safety

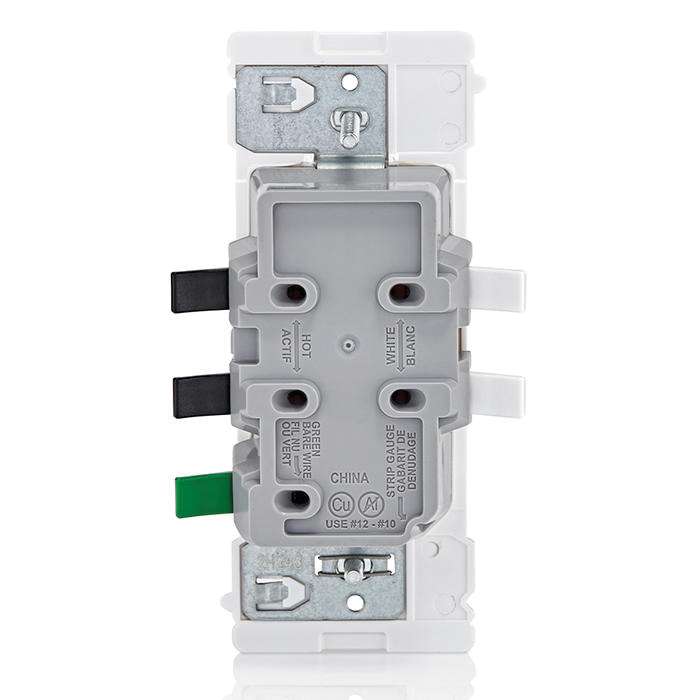

- Convenient - color-coded lever terminals to help prevent miswiring
- Compatible - coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate
- Provides the traditional appearance and great performance of Decora devices in a new, faster, easier-to-install and safer design
- Lever doors have snap feature to assure connection has been made, audible click confirms lever door is closed
- Only residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety, eliminates need for electrical tape
- Strap's unique tongue and groove alignment feature offers quicker trim out on multi-gang lever edge installations
