Leviton
Leviton Lever Edge EGFT1-W GFCI Outlet, 125 V, 15 A, Solid Copper, Stranded Wiring, White
- Model Number: EGFT1-W
- UPC: 078477016282
- San Lorenzo SKU: 454913
-
Leviton Lever Edge EGFT1-W GFCI Outlet, 125 V, 15 A, Solid Copper, Stranded Wiring, White
-
Promo Price:
-
- Alternate Item #: LEVR02EGFT10K
- Web SKU: 103855746
Leviton EGFT1-W

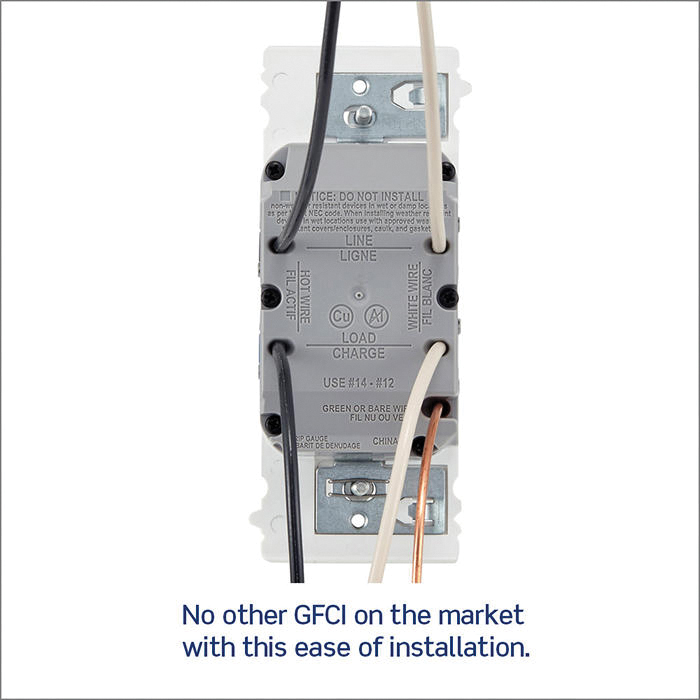

Leviton's industry-leading GFCI line has been expanded with the addition of the Lever Edge GFCI - the faster and easier way to install GFCI protection! Utilizing unique color-coded lever terminals, the blue lever helps reduce the possibility of line/load reversal. Wiring your GFCI is now as easy as open, push, click, done.
| Current Rating | : | 15 A |
| Number of Poles | : | 2 |
| Voltage Rating | : | 125 V |
| Wire Size | : | 14, 12 ga |
| Wiring Type | : | Solid Copper, Stranded |
| Color | : | White |
| Material | : | Thermoplastic |

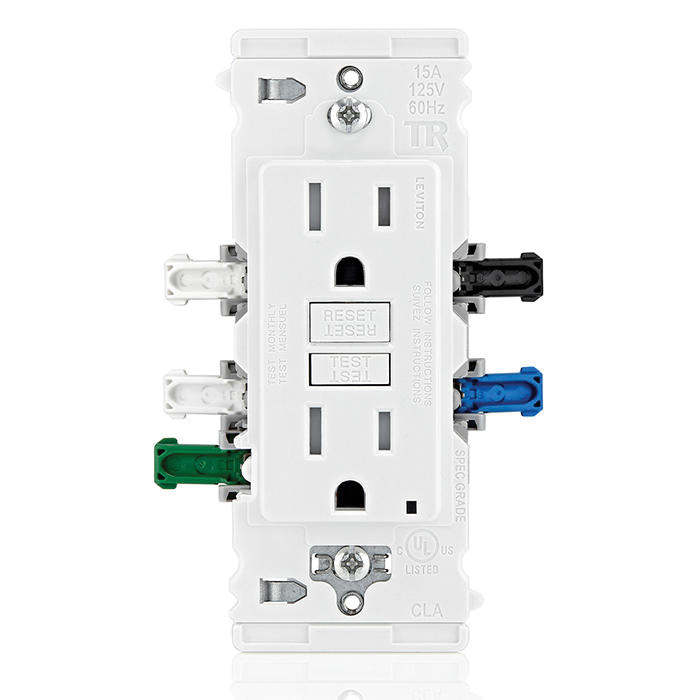

- Color-coded lever terminals for fast, efficient wiring, blue lever for load wire helps reduce risk of miswiring
- Strap's unique tongue and groove alignment feature offers quicker trim out on multi-gang lever edge installations
- Lever doors have snap feature to assure connection has been made, audible click confirms lever door is closed
- No exposed metal parts for enhanced safety, eliminates need for electrical tape
- Lever connectors work with 12 and 14 ga stranded and solid copper wire
- Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 5 s
- Auto-monitoring exceeds the UL requirement
- Status indicator light provides simple, intuitive feedback on power and protection status
- Lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
